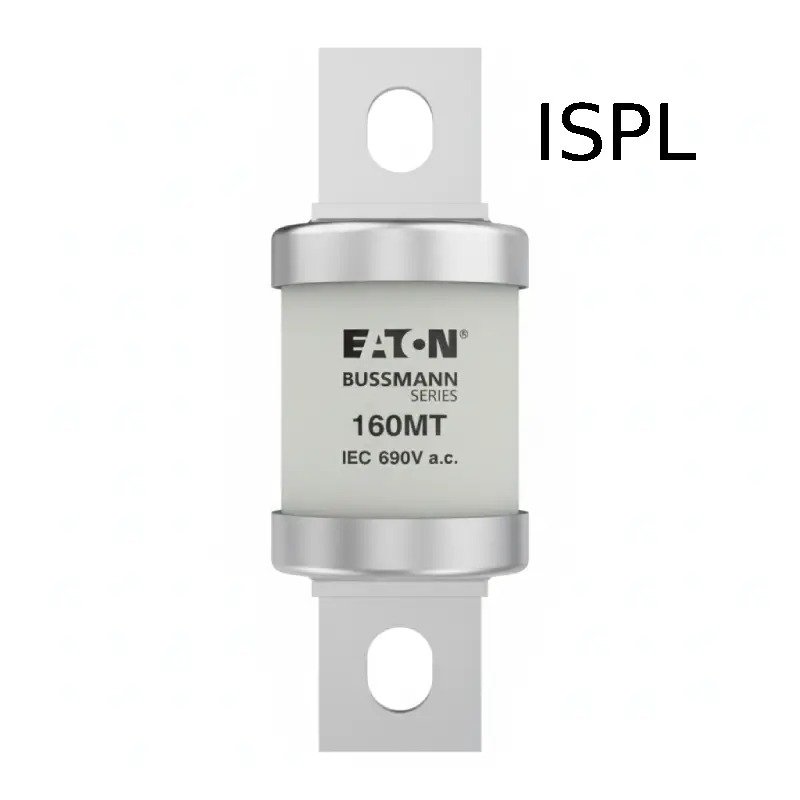

| SKU | 160MT | |
| descriptionLabel | Eaton Bussmann series high speed British standard fuse, Single barrel, 160A, 690 VAC/350 VDC (IEC), 700 VAC (UL), Class aR, Breaking capacity 200 kA RMS Sym., 40 kA DC at 350 VDC (IEC) | |
| General specifications | ||
| Product Name | Eaton Bussmann series high speed british standard fuse | |
| Catalog Number | 160MT | |
| EAN | 5027590035415 | |
| UPC | 051712831611 | |
| Product Length/Depth | 46 mm | |
| Product Height | 45 mm | |
| Product Width | 115 mm | |
| Product Weight | 256 g | |
| Compliances | CE Marked RoHS Compliant | |
| Certifications | UL Recognized IEC Rated Designed and tested to BS88 part 4 IEC 60269-4 UL recognized | |
| Electrical data | ||
| Amperage Rating | 160 A | |
| Voltage rating | 690 V (IEC), 700 V (UL) | |
| Rated voltage AC | 690 V | |
| Rated voltage DC | 350 V | |
| Interrupt rating | 200 kA RMS Sym (IEC/UL), 40 kA at 350 Vdc (IEC) | |
| Class | Class aR | |
| Pre arc (I2T) | 2400 | |
| Clearing (I2T) | 15000 at 415 V, 25000 at 660 V | |
| Watt losses | 26 W | |
| Product specifications | ||
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers | |
| Fuse indicator | None | |
| Compatble Trip indicator/Microswitch | ||
| Suitable for | MC-700 Trip indicator kit (indicator + clips) TI700 Fuse indicator MAI Microswitch/adaptor MBI Microswitch/adaptor | |
| Brochures |
