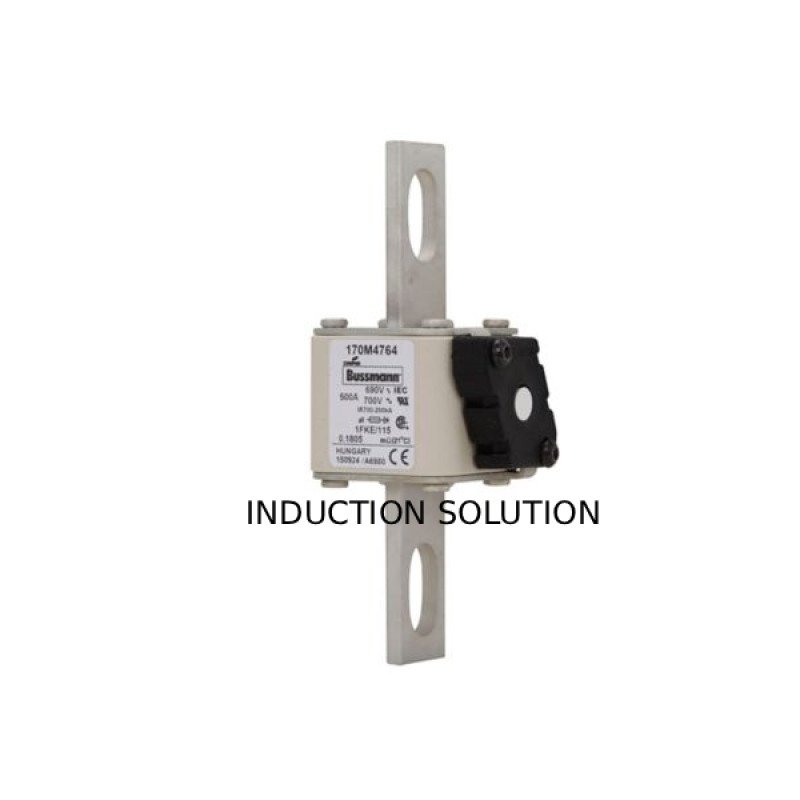

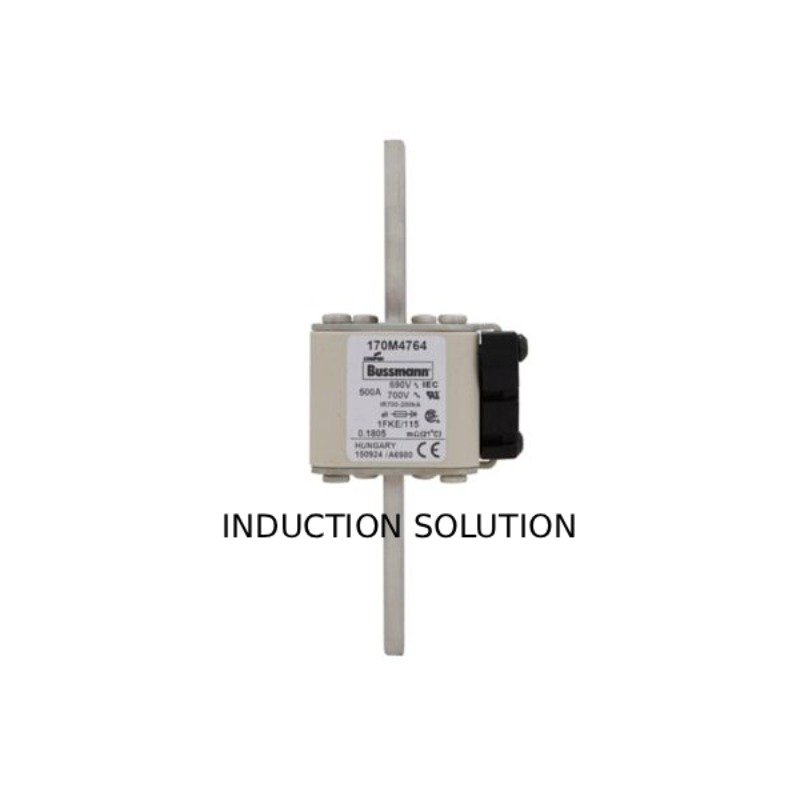

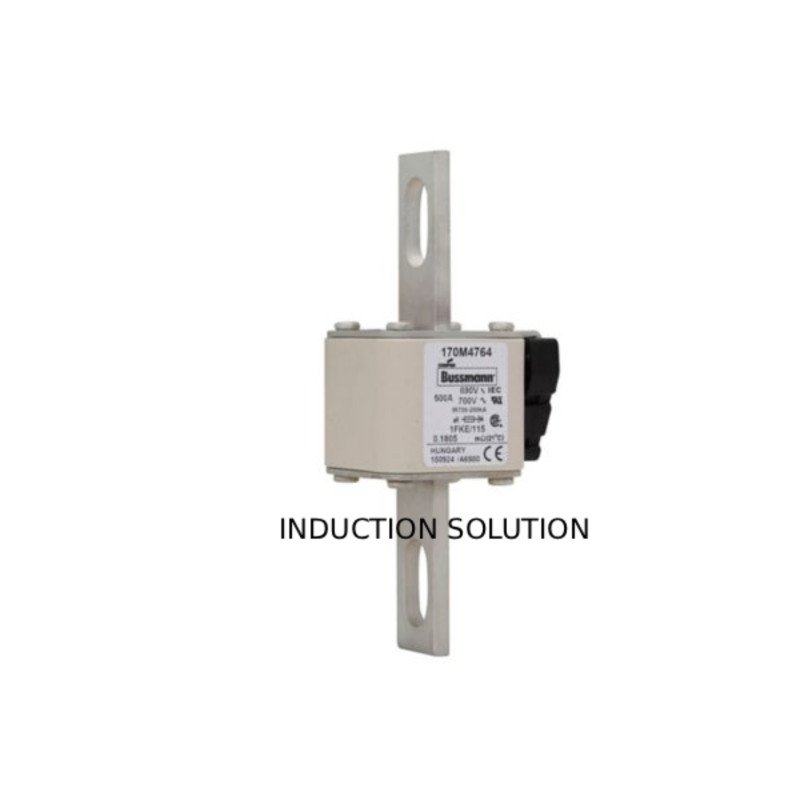

| SKU | 170M4764 Model code: FUSE 500A 690V 1FKE/115 AR UC | |
| descriptionLabel | Fuse-link, high speed, 500 A, AC 690 V, size 1, 53 x 69 x 136 mm, aR, IEC, UL, single indicator, 115 mm fixing centres | |
| General specifications | ||
| Product Name | Eaton Bussmann series high speed square body fuse | |
| Catalog Number | 170M4764 | |
| Model Code | FUSE 500A 690V 1FKE/115 AR UC | |
| UPC | 051712793230 | |
| EAN | 5996516014028 | |
| Product Length/Depth | 170 mm | |
| Product Height | 52 mm | |
| Product Width | 72 mm | |
| Product Weight | 529 g | |
| Warranty | Not Applicable | |
| Compliances | CE Marked RoHS Compliant | |
| Certifications | UL Recognized IEC Rated | |
| Global Catalog | 170M4764 | |
| Product Type | High speed square body fuse | |
| Product specifications | ||
| Amperage Rating | 500 A | |
| Breaking capacity | 200 kA | |
| Fuse indicator | Centre fuse status indicator | |
| Insulated metal gripping lugs (IMGL) | No | |
| Utilization category | aR (accompanied semiconductor protection) | |
| Voltage type | AC | |
| Fuse size | 1 | |
| Rated voltage AC | 690 V | |
| Center-to-center distance of connections | 115 mm | |
| Current type | AC | |
| Mounting dimension | M12 | |
| Class | Class aR | |
| Clearing (I2T) | 170000 at 660 V | |
| Watt losses | 72 W | |
| Fuse shape | Square body, center bolted tags | |
| Pre arc (I2T) | 25000 | |
| Color | None | |
| Interrupt rating | 200 kAIC | |
| Fitted with: | Type K Indicator for micro | |
| Connection | Blade end x blade end | |
| Construction size | 1 | |
| Packaging type | Standard | |
| Voltage rating | 690 V | |
| Type | Fuse | |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers | |
| Fuse type | US Style FKE/115 Type K indicator for micro Bolted tag | |
| Fuse system (according to IEC 60269) | Other |
