| SKU | 170M5461 | |

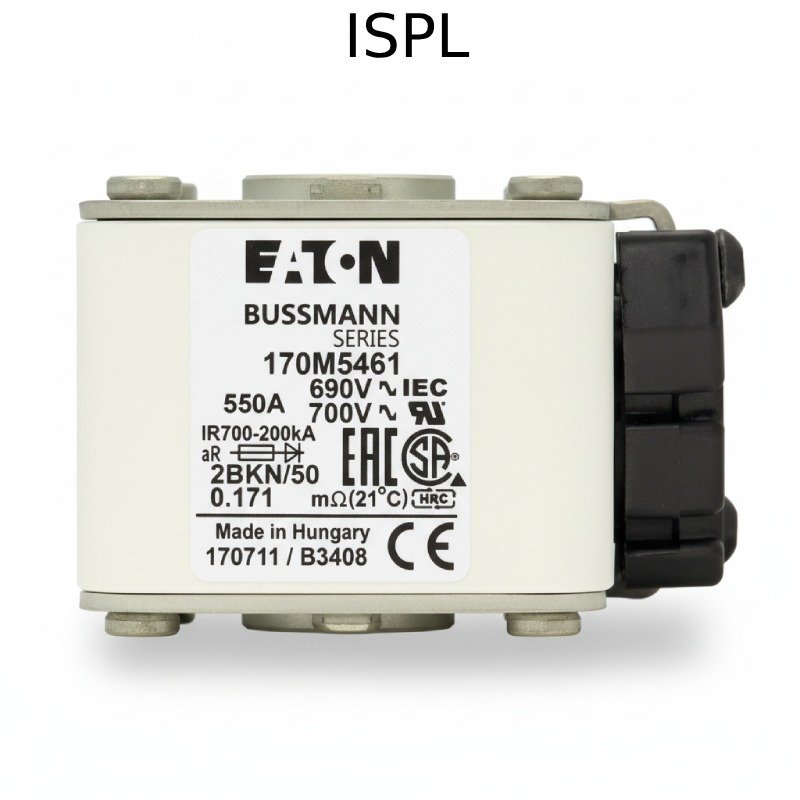

| descriptionLabel | Fuse-link, high speed, 550 A, AC 690 V, size 2, aR, IEC, UL, single indicator | |
| General specifications | ||
| Product Name | Eaton Bussmann series high speed square body fuse | |
| Catalog Number | 170M5461 | |
| EAN | 5027590457286 | |
| UPC | 051712261371 | |
| Product Length/Depth | 77 mm | |
| Product Height | 59 mm | |
| Product Width | 51 mm | |
| Product Weight | 560 g | |
| Compliances | CE Marked RoHS Compliant | |
| Certifications | UL Recognized IEC Rated | |
| Product specifications | ||
| Amperage Rating | 550 A | |
| Breaking capacity | 200 kA | |
| Fuse indicator | Centre fuse status indicator | |
| Insulated metal gripping lugs (IMGL) | No | |
| Utilization category | aR (accompanied semiconductor protection) | |
| Voltage type | AC | |
| Fuse size | 2 | |
| Rated voltage AC | 690 V | |
| Center-to-center distance of connections | 50.3 mm | |
| Current type | AC | |
| Mounting dimension | M10 | |
| Class | Class aR | |
| Clearing (I2T) | 190000 at 660 V | |
| Watt losses | 80 W | |
| Fuse shape | Square body, flush end contacts | |
| Pre arc (I2T) | 28000 | |
| Color | None | |
| Interrupt rating | 200 kAIC | |
| Fitted with: | Type K Indicator for micro | |
| Construction size | 2 | |
| Mounting method | Flush | |
| Packaging type | Standard | |
| Voltage rating | 690 V (IEC), 700 V (UL) | |
| Type | Fuse | |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers | |
| Fuse type | Flush end BKN/Type K Indicator for Micro | |
| Fuse system (according to IEC 60269) | IEC 60269-4 flush end connections type A |
