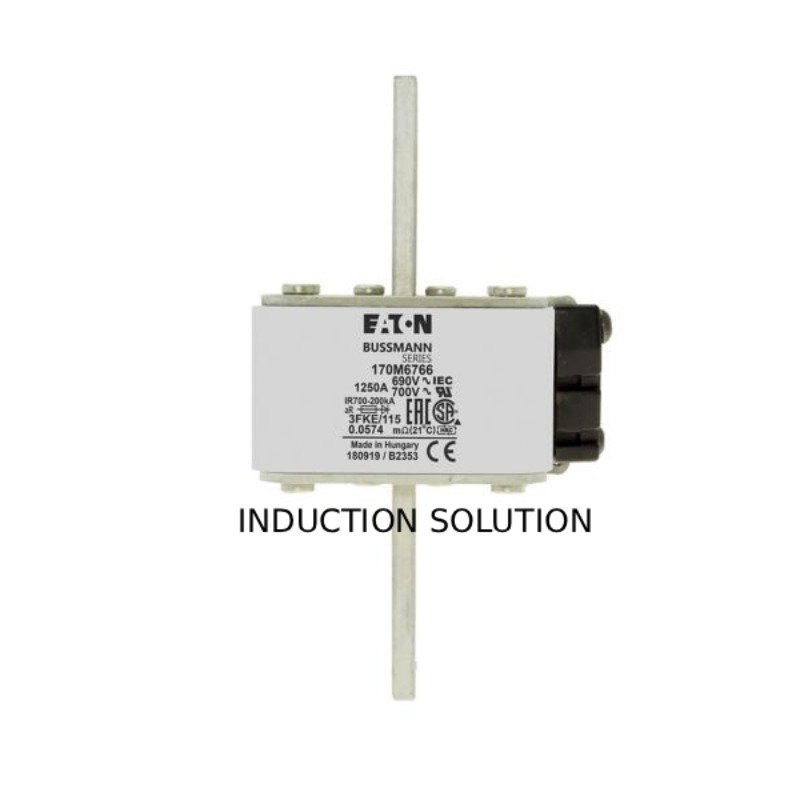

| SKU | 170M6766 Model code: FUSE 1250A 690V 3FKE/115 AR UC | |
| description Label | Fuse-link, high speed, 1250 A, AC 690 V, size 3, 76 x 92 x 139 mm, aR, IEC, UL, single indicator | |
| General specifications | ||
| Product Name | Eaton Bussmann series high speed square body fuse | |
| Catalog Number | 170M6766 | |
| Model Code | FUSE 1250A 690V 3FKE/115 AR UC | |
| UPC | 051712812306 | |
| EAN | 5996516020715 | |
| Product Length/Depth | 168 mm | |
| Product Height | 76 mm | |
| Product Width | 95 mm | |
| Product Weight | 1045 g | |
| Warranty | Not Applicable | |
| Compliances | CE Marked RoHS Compliant | |
| Certifications | UL Recognized IEC Rated | |
| Global Catalog | 170M6766 | |
| Product Type | High speed square body fuse | |
| Product specifications | ||
| Amperage Rating | 1250 A | |
| Breaking capacity | 200 kA | |
| Fuse indicator | Centre fuse status indicator | |
| Insulated metal gripping lugs (IMGL) | No | |
| Utilization category | aR (accompanied semiconductor protection) | |
| Voltage type | AC | |
| Fuse size | 3 | |
| Rated voltage AC | 690 V | |
| Center-to-center distance of connections | 114 mm | |
| Current type | AC | |
| Mounting dimension | Other | |
| Class | Class aR | |
| Clearing (I2T) | 1950000 at 660 V | |
| Watt losses | 140 W | |
| Fuse shape | Square body, center bolted tags | |
| Pre arc (I2T) | 290000 | |
| Color | None | |
| Interrupt rating | 200 kAIC | |
| Fitted with: | Type K Indicator for micro | |
| Connection | Blade end x blade end | |
| Construction size | 3 | |
| Packaging type | Standard | |
| Voltage rating | 690 V | |
| Type | Fuse | |
| Application | semiconductor protection | |
| Fuse type | US Style FKE/115 Type K indicator for micro Bolted tag | |
| Fuse system (according to IEC 60269) | Other |
