| SKU | 170M6768 | |
| descriptionLabel | Fuse-link, high speed, 1500 A, AC 690 V, size 3, 76 x 92 x 139 mm, aR, IEC, UL, single indicator | |
| General specifications | ||

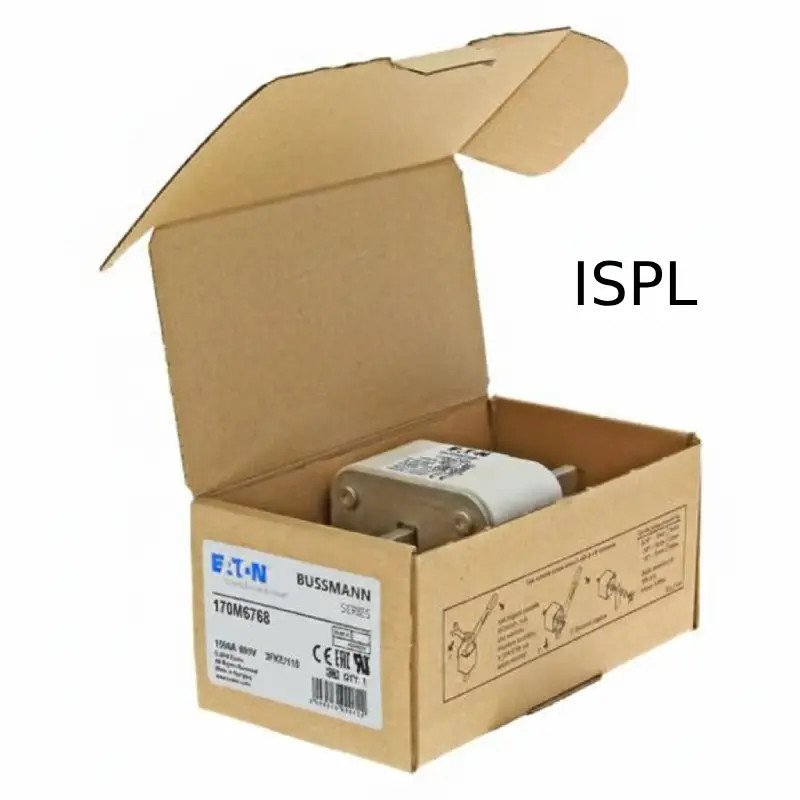

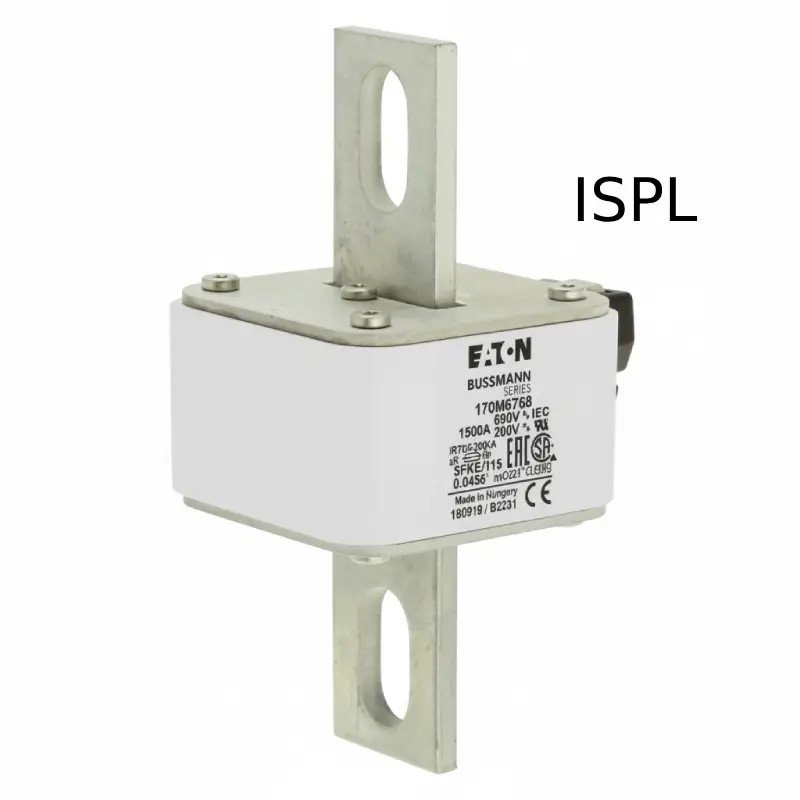

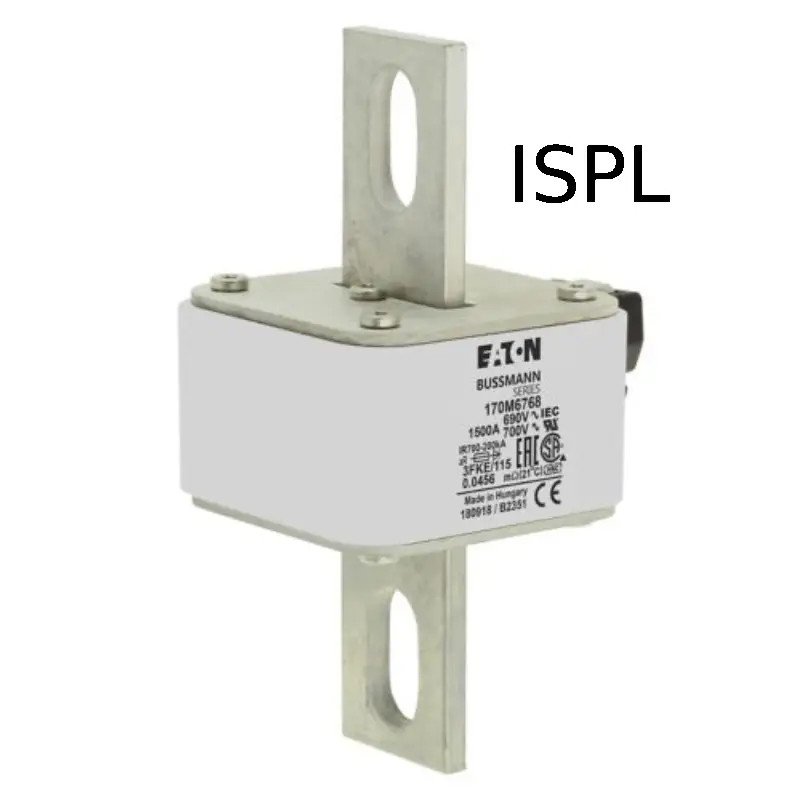

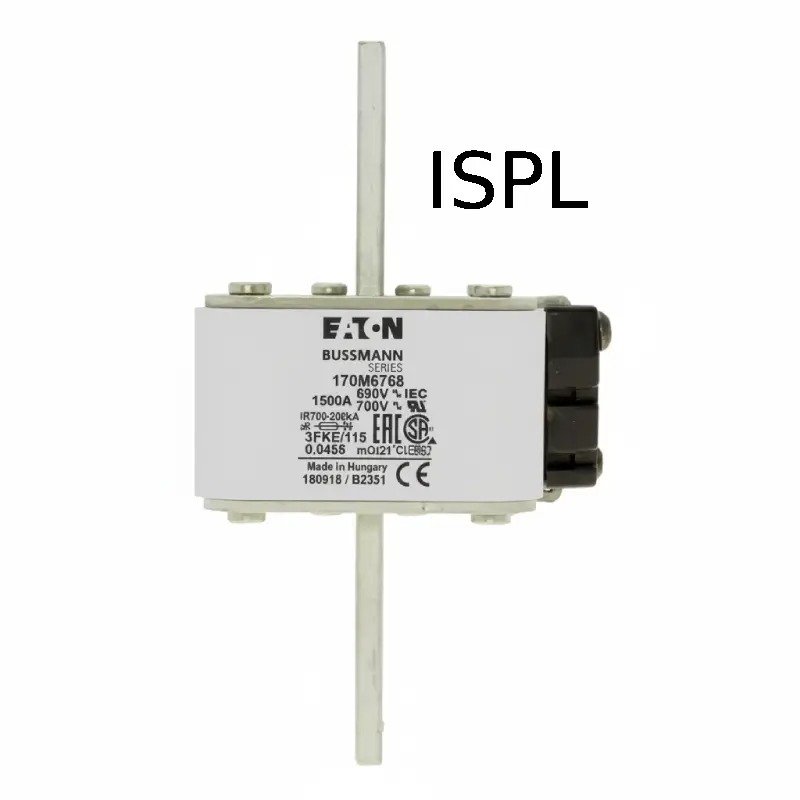

| Product Name | Eaton Bussmann series high speed square body fuse | |
| Catalog Number | 170M6768 | |
| EAN | 5996516020722 | |
| UPC | 051712815246 | |
| Product Length/Depth | 168 mm | |
| Product Height | 76 mm | |
| Product Width | 95 mm | |
| Product Weight | 1002 g | |
| Compliances | CE RoHS Compliant EAC | |
| Certifications | IEC 60269-4 | |
| Product specifications | ||
| Amperage Rating | 1500 A | |
| Breaking capacity | 200 kA | |
| Fuse indicator | Centre fuse status indicator | |
| Insulated metal gripping lugs (IMGL) | No | |
| Utilization category | aR (accompanied semiconductor protection) | |
| Voltage type | AC | |
| Fuse size | 3 | |
| Rated voltage AC | 690 V | |
| Center-to-center distance of connections | 114 mm | |
| Current type | AC | |
| Mounting dimension | Other | |
| Class | Class aR | |
| Clearing (I2T) | 3100000 at 660 V | |
| Watt losses | 160 W | |
| Fuse shape | Square body, center bolted tags | |
| Pre arc (I2T) | 460000 | |
| Color | None | |
| Interrupt rating | 200 kAIC | |
| Fitted with: | Type K Indicator for micro | |
| Construction size | 3 | |

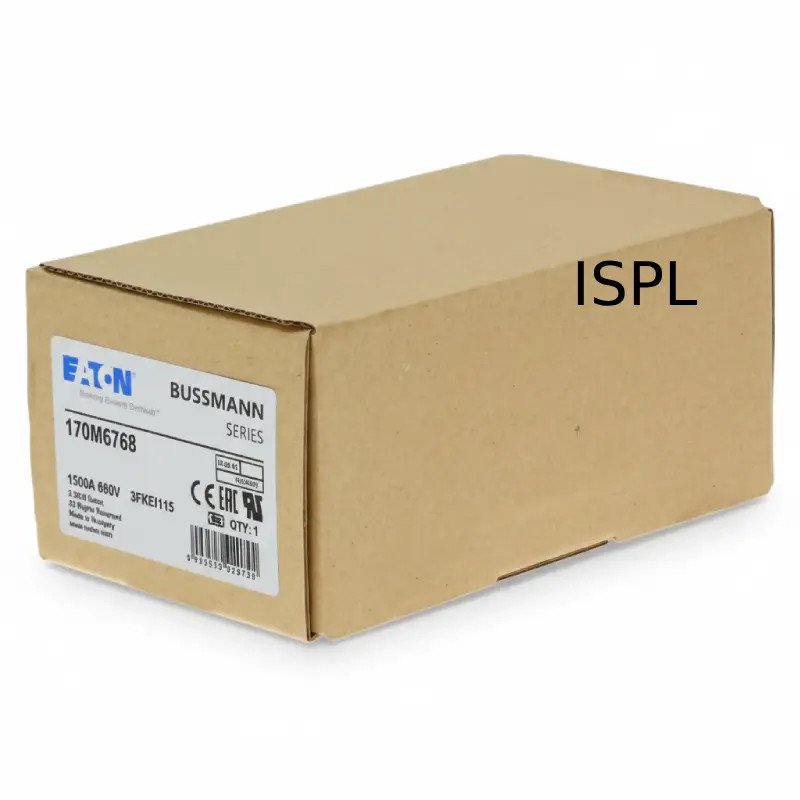

| Packaging type | Standard | |
| Voltage rating | 690 V | |
| Type | Fuse | |
| Application | semiconductor protection | |
| Fuse type | US Style FKE/115 Type K indicator for micro Bolted tag | |
| Fuse system (according to IEC 60269) | Other |
