| SKU | 56ET | |

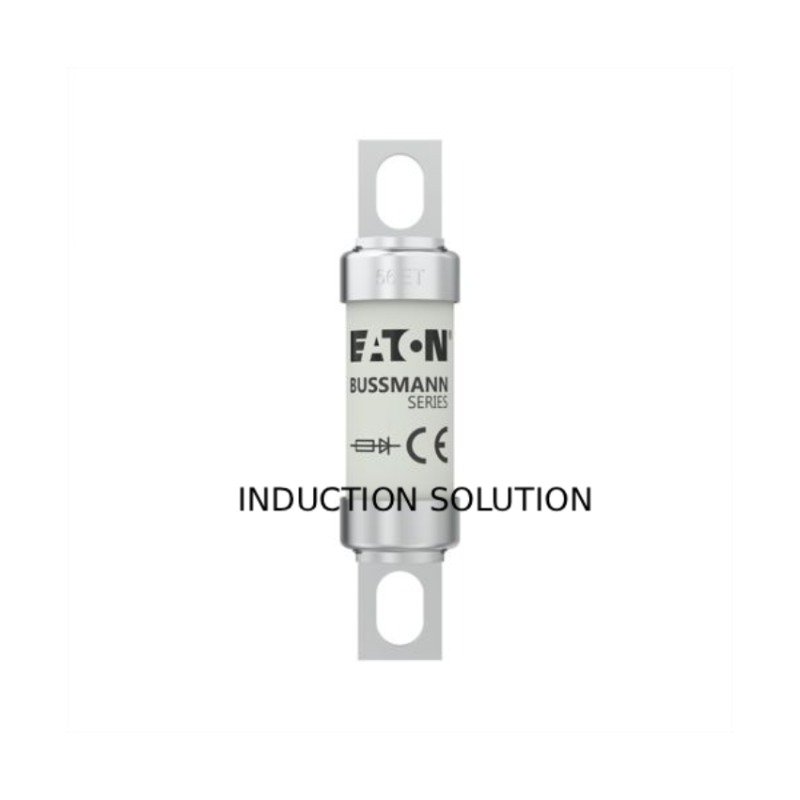

| descriptionLabel | Eaton Bussmann series high speed British standard fuse, Single barrel, 56A, 690 VAC/500 VDC (IEC), 700 VAC/500 VDC (UL), Class aR, Breaking capacity 200 kA RMS Sym., 50 kA DC at 500 VDC | |
| General specifications | ||
| Product Name | Eaton Bussmann series high speed british standard fuse | |
| Catalog Number | 56ET | |
| EAN | 5027590484299 | |
| UPC | 051712835763 | |
| Product Length/Depth | 76 mm | |
| Product Height | 20 mm | |
| Product Width | 20 mm | |
| Product Weight | 41.4 g | |
| Compliances | CE Marked RoHS Compliant | |
| Certifications | UL Recognized IEC Rated Designed and tested to BS88 part 4 IEC 60269-4 | |
| Electrical data | ||
| Amperage Rating | 56 A | |
| Voltage rating | 690 V (IEC), 700 V (UL) | |
| Rated voltage AC | 690 V | |
| Rated voltage DC | 500 V | |
| Interrupt rating | 200 kA RMS Sym, 50 kA at 500 Vdc | |
| Class | Class aR | |
| Pre arc (I2T) | 135 | |
| Clearing (I2T) | 950 | |
| Watt losses | 11 W | |
| Product specifications | ||
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers | |
| Fuse indicator | None | |
| Compatble Trip indicator/Microswitch | ||
| Suitable for | EC-600 Trip indicator kit (indicator + clips) TI700 Fuse indicator MAI Microswitch/adaptor MBI Microswitch/adaptor |
