| SKU | 630FMM | |

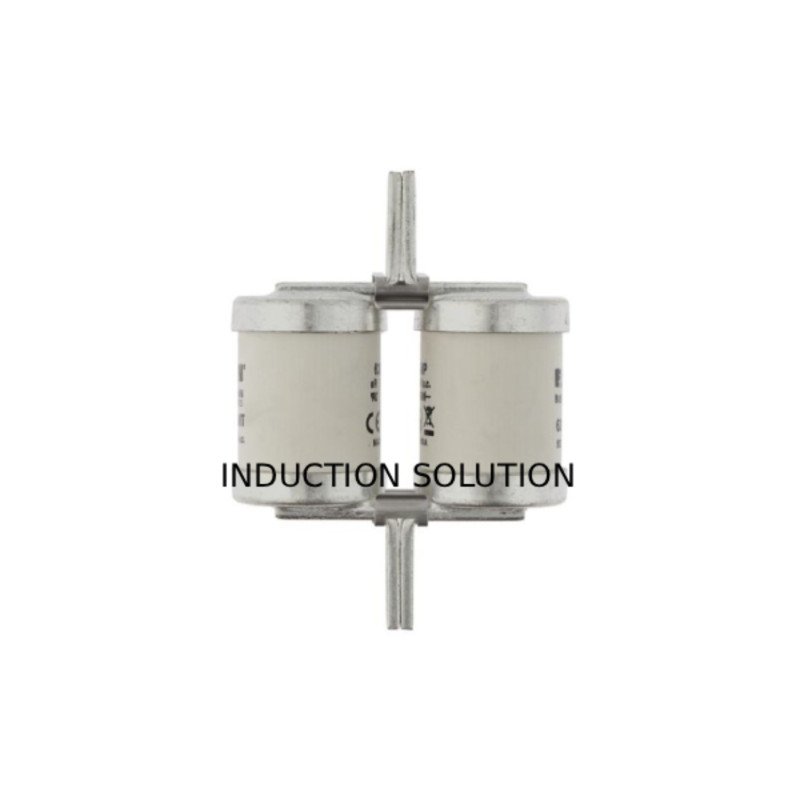

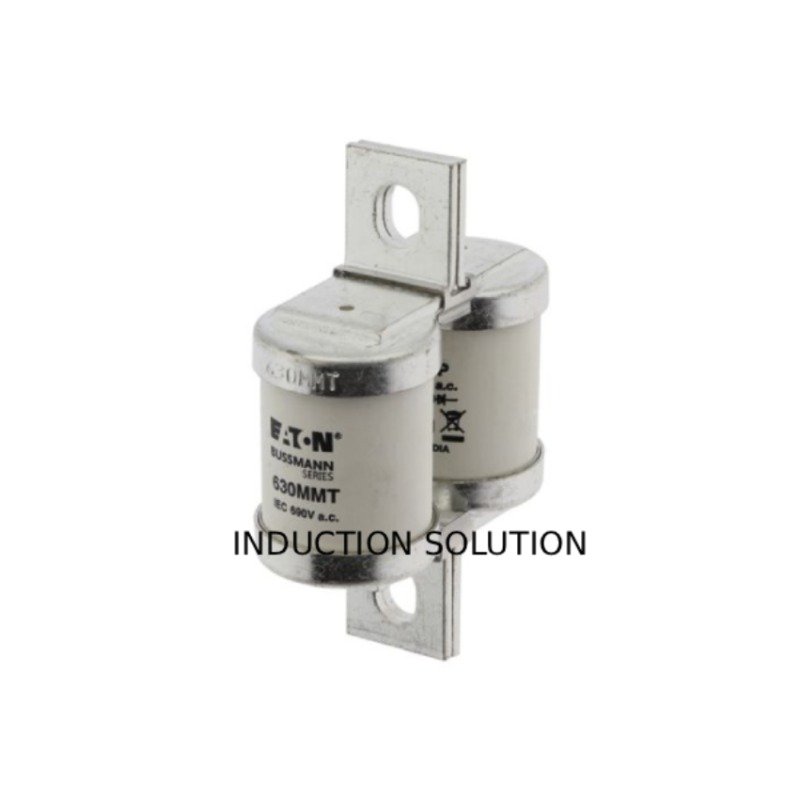

| descriptionLabel | Eaton Bussmann series high speed British standard fuse, Double barrel, 630A, 690 VAC/450 VDC (IEC), Class aR, Breaking capacity 200 kA RMS Sym., 40 kA DC at 450 VDC | |
| General specifications | ||
| Product Name | Eaton Bussmann series high speed british standard fuse | |
| Catalog Number | 630FMM | |
| UPC | 051712836364 | |
| EAN | 5027590052351 | |
| Product Length/Depth | 112 mm | |
| Product Height | 38 mm | |
| Product Width | 83 mm | |
| Product Weight | 486 g | |
| Warranty | Not Applicable | |
| Compliances | CE Marked RoHS Compliant | |
| Certifications | IEC Rated UL Recognized Designed and tested to BS88 part 4 IEC 60269-4 UL recognized CCC | |
| Global Catalog | 630FMM | |
| Product Type | High speed british standard fuse | |
| Product specifications | ||
| Amperage Rating | 630 A | |
| Breaking capacity | 200 kA | |
| Fuse indicator | None | |
| Insulated metal gripping lugs (IMGL) | No | |
| Utilization category | aR (accompanied semiconductor protection) | |
| Voltage type | AC/DC | |
| Rated switching capacity | 200 kA | |
| Rated voltage AC | 690 V | |
| Rated voltage DC | 450 V | |
| Center-to-center distance of connections | 83.7 mm | |
| Mounting dimension | M8 | |
| Current type | AC/DC | |
| Class | Class aR | |
| Clearing (I2T) | 180000 | |
| Watt losses | 100 W | |
| Fuse shape | Center dual barrel bolted tags | |
| Pre arc (I2T) | 45000 | |
| Color | None | |
| Interrupt rating | 200 kA RMS Sym (IEC/UL), 40 kA at 450 Vdc (IEC) | |
| Connection | Blade end x blade end | |
| Construction size | Other | |
| Mounting method | Stud | |
| Packaging type | Standard | |
| Voltage rating | 690 V AC | |
| Type | Fuse | |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers | |
| Fuse type | FMM | |
| Suitable for | MC-600 Trip indicator kit (indicator + clips) TI700 Fuse indicator MAI Microswitch/adaptor MBI Microswitch/adaptor | |
| Fuse system (according to IEC 60269) | Other |
