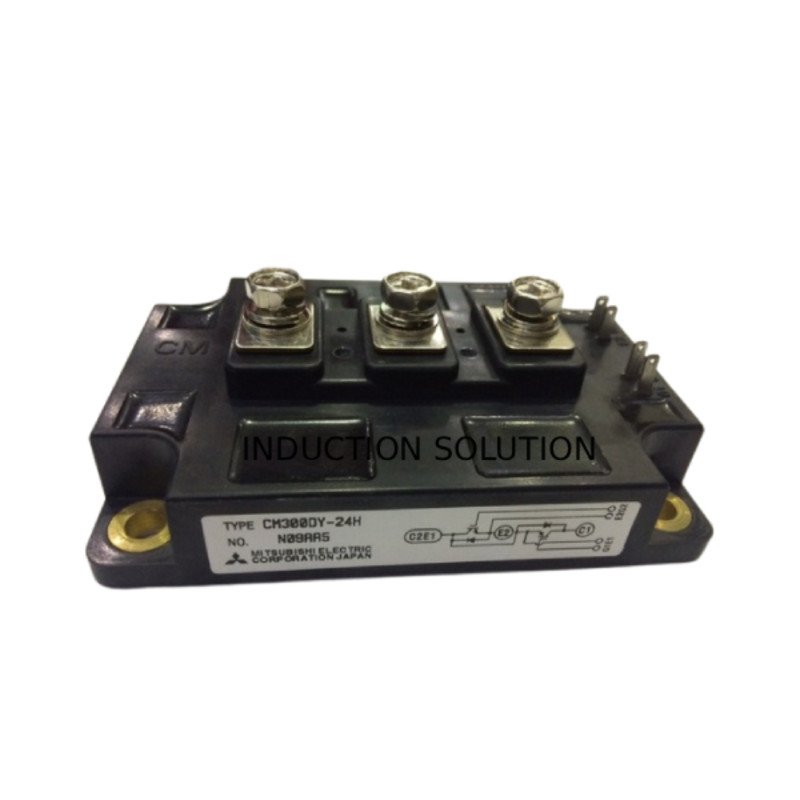

The Mitsubishi CM300DY-24H is a high-power dual IGBT module designed for industrial motor drives, inverters, and power conversion systems. It delivers 300 A continuous collector current at a maximum collector-emitter voltage of 1200 V, with integrated fast-recovery diodes for reliable high-speed switching.
Dual IGBT module
Collector current: 300 A
Collector-emitter voltage: 1200 V
Low Vce(sat) for energy-efficient switching
Built-in free-wheeling diodes
Isolated baseplate for improved thermal management
Chassis-mount design
Mitsubishi quality and durability
Model: CM300DY-24H
Configuration: Dual IGBT + Dual Diode
Collector Current (Ic): 300 A (continuous)
Collector-Emitter Voltage (Vces): 1200 V
Vce(sat): Approx. 2.2 V @ 300 A
Input Capacitance: ~140 nF
Turn-on/off Time: Fast switching response
Gate-Emitter Voltage: ±20 V
Operating Temperature: –40 °C to +150 °C
Package: Chassis-mount module with insulated base
High-power inverters
AC/DC motor drives
UPS and power backup systems
Induction heating and welding equipment
Renewable energy converters (solar/wind)
High current and voltage ratings for demanding loads
Dual IGBT design streamlines power circuitry
Excellent heat dissipation and switching efficiency
Trusted Mitsubishi module for industrial automation
The Mitsubishi CM300DY-24H IGBT module is available and ships worldwide.
