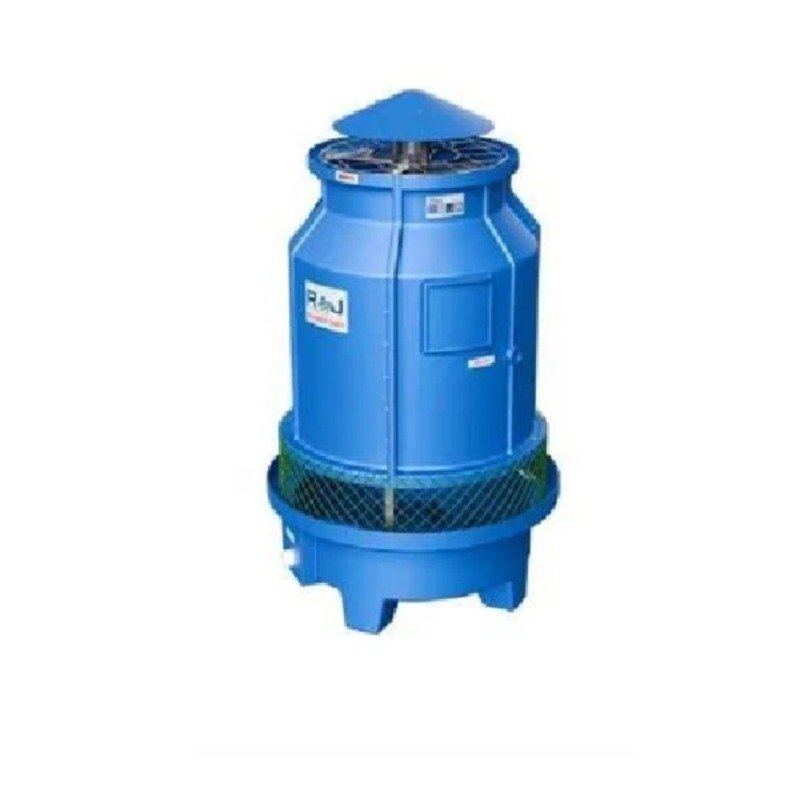

10 TR Round Bottle Cooling Tower
|
|
|
TECHNICAL SPECIFICATION:
|
|
|
· Model |
10 TR |
|
· Type |
Round bottle shape With FRP Basin Counter Flow Type |
|
· NO. Of Sets |
1 |
|
· Overall Dimensions |
Dia 1250 mm X 2200 mm HT |
|
· Dry Weight |
83KGS. |
|
DESIGN
|
|
|
· Water Flow Rate |
100 LPM |
|
· Hot Water Temperature |
42 Celcious |
|
· Cold Water Temperature |
32 Celcious |
|
· Wet Bulb Temperature |
28 Celcious |
|
· Cooling Capacity |
44 Kw |
|
· Basin Holding Capacity |
250 Liter |
|
· Pressure at Inlet Flange |
0.2 kg/cm |
|
· P.V.C. Fills Qty |
16 Nos |
|
· P.V.C Fills Dimension |
Length: 600 mm, Width: 150 mm, Hight:300 mm |
|
· Fills Flute Size |
12 mm |
|
AUXILIARY EQUIPMENT
|
|
|
· Fan Type |
Axial Flow, Direct Driven |
|
· Fan Dia Meter |
26 Inch |
|
· Fan Speed |
960 RP 960 RPM |
|
· Electric Motor Make |
Avon / New Bharat / Sabar |
|
· Electric Motor Type |
Squirrel Cage, Induction Type |
|
· Enclosure/Protection |
Totally Enclosed IP: 55 |
|
· H.P./R.P.M. |
0.5 HP/960 RPM |
|
LOSSES
|
|
|
· Evaporation Losses |
1.53 % OF Water Circulation |
|
· Drift Losses |
0.018 % OF Water Circulation |
|
· Make Up Water Quantity(Maximum) |
1.548 % OF Water Circulation |
|
CONNECTION DETAILS
|
|
|
· Inlet |
50 mm |
|
· Outlet |
50 mm |
|
· Drain |
NON USE |
