Number of Channels |
6 |
|
Output Type |
Analog |
|
Usage/Application |
Industrial |
|
Network Type |
Converter module |
|
Brand |
Delta |
|
I/O Points |
AI4 / AO2 |
|
Model No |

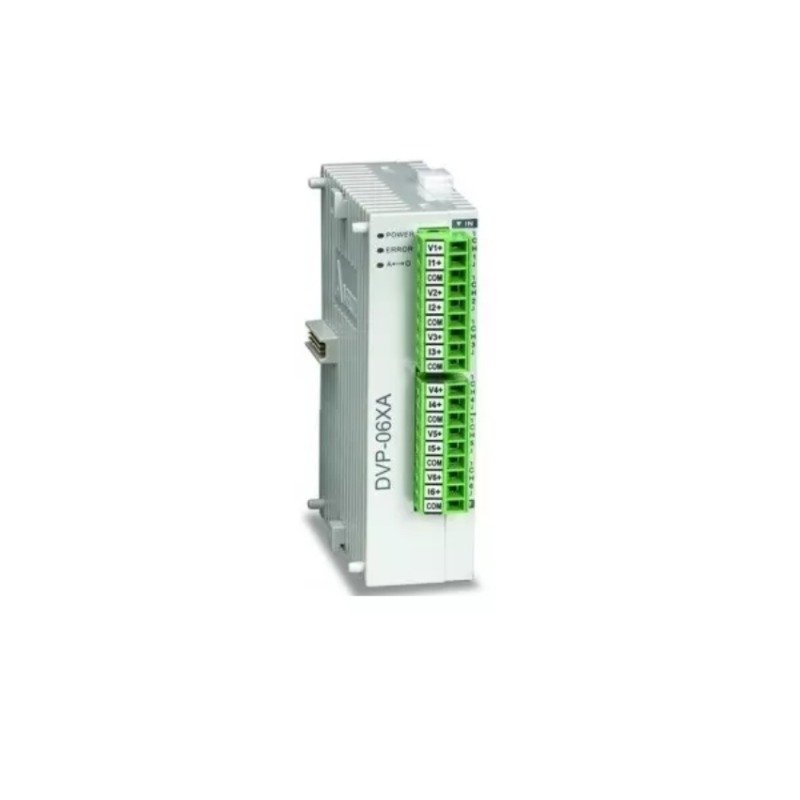

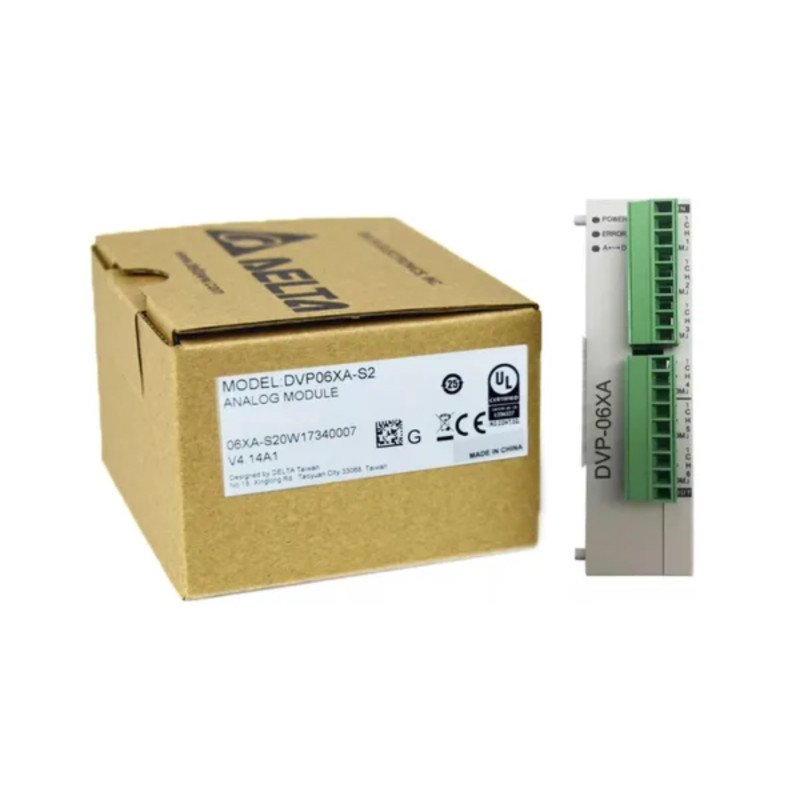

DVP06XA-S |
|
Power Supply Voltage |
24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%) |
|
Analog Input Channel |
4 channels per module |
|
Overall Accuracy |
+-0.5% of full scale of 25 deg C (77 deg F) +-1% of full scale during 0 ~ 55 deg C (32 ~ 131 deg F) |
|
Response Time |
3ms x channels |
|
Analog signal Output Channels |
2 channel per module |
|
Dimension |
4 x 3 x 5 inch |
|
Availability |
In Stock |
Features:
· DVP06XA-S is able to receive 4 points of analog input signals (voltage or current) and convert them into 12-bit digital signals. DVP06XA-S receives 2 groups of 12-bit digital data from the PLC MPU and converts them into 2 points of analog signals for output (in voltage/current). There are 49 16-bit control registers (CR) in DVP06XA-S, and the data in it can be read and written by using FROM/TO instructions in DVP Slim series PLC MPU program.
· The system version of DVP06XA-S can be updated via RS-485 communication. The power unit is separate from it and is small in size and easy to install.
· The user can select voltage or current input by wiring. Range of voltage input: +-10VDC (resolution: 5mV). Range of current input: +-20mA (resolution: 20uA).
· The user can also select voltage or current output by wiring. Range of voltage output: 0V ~ +10VDC (resolution: 2.5mV). Range of current output: 0mA ~ 20mA (resolution: 5uA).
