Type of Product |
Programmable Logic Controllers |
|
Model No |
DVP08SM11N |
|
Rated Power Supply |
24 VDC |
|
Features |
Extn Unit , DC Power Source ; I/O 8/0. 24VDC (-15%~+20%) (the counter-connection protection towards the DC input power polarity is included) |
|
Product Title |

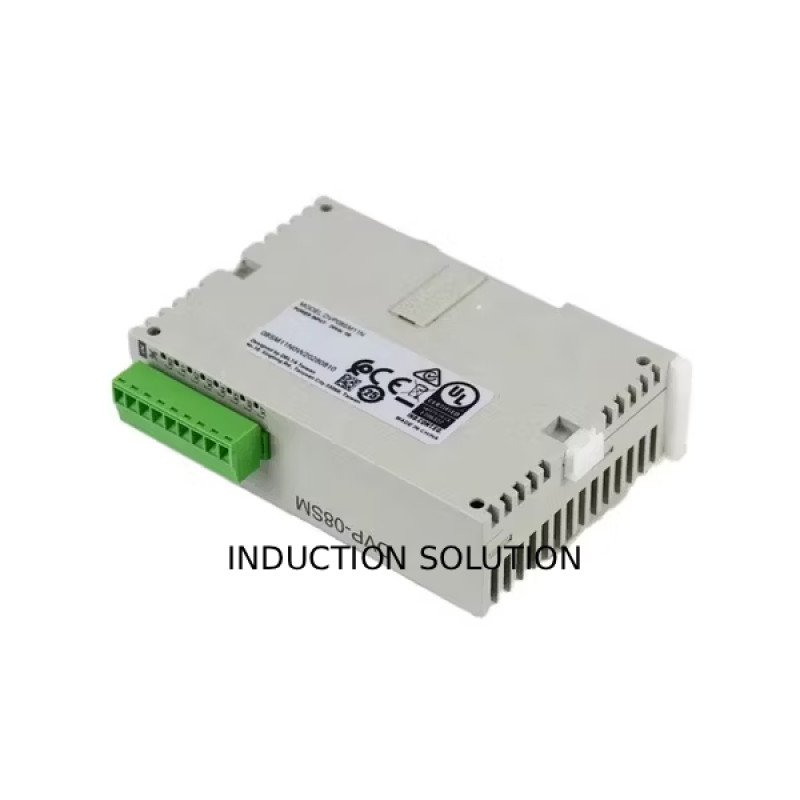

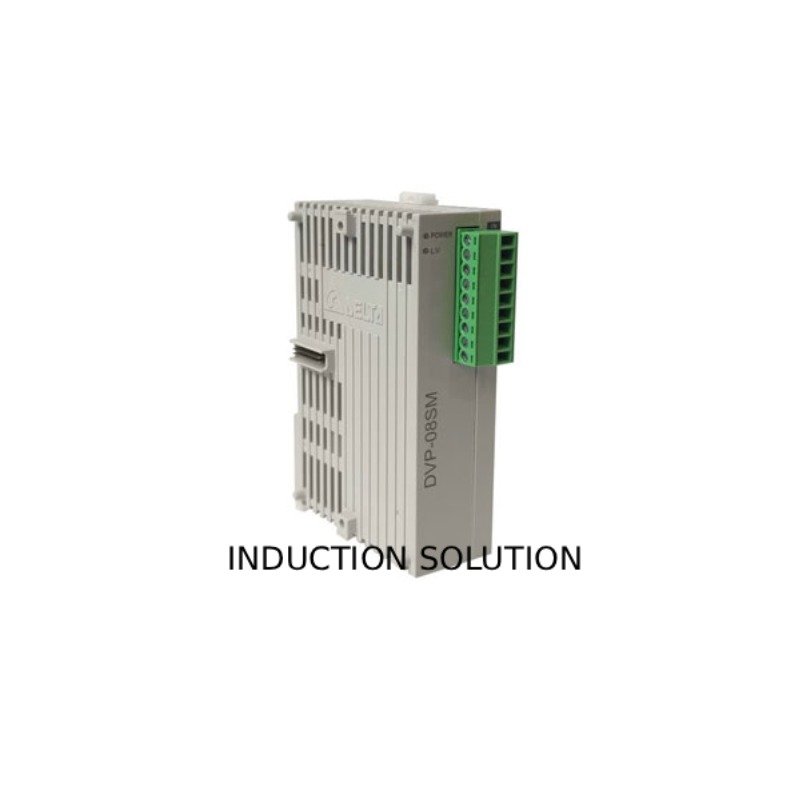

Delta PLC DVP08SM11N Extn Unit DC Power Source I/O 8/0 |
|
Country of Origin |
India |
Motion Specifications
Within 5ms of the momentary power loss, the device will keep on operating
Maximum Power Consumption
1W
Insulation Resistance
Above 5 MΩ (500VDC between the ground and all the I/O points)
Noise Immunity
ESD(IEC 61131-2, IEC 61000-4-2): 8KV Air Discharge
EFT(IEC 61131-2, IEC 61000-4-4): Power Line: 2KV, Digital I/O: 1KV, Analog &
Communication I/O: 1KV
Damped-Oscillatory Wave: Power Line: 1KV, Digital I/O: 1KV
RS(IEC 61131-2, IEC 61000-4-3): 26MHz~1GHz, 10V/m
Grounding
The diameter of the grounding wire cannot be smaller than that of terminals L and N (if numerous PLCs are used at the same time, make sure that each PLC is grounded respectively to the ground poles)
Vibration/Shock Immunity
International Standard Regulations: IEC1131-2, IEC 68-2-6 (TEST Fc)/ IEC1131-2 & IEC 68-2-27 (TEST Ea)
Operation/Storage Environment
Operation: 00C~550C(temperature), 50~95% (humidity), pollution degree: 2; Storage: -400C~700C (temperature), 5~95% (humidity)
