| SKU | FWH-200B | |

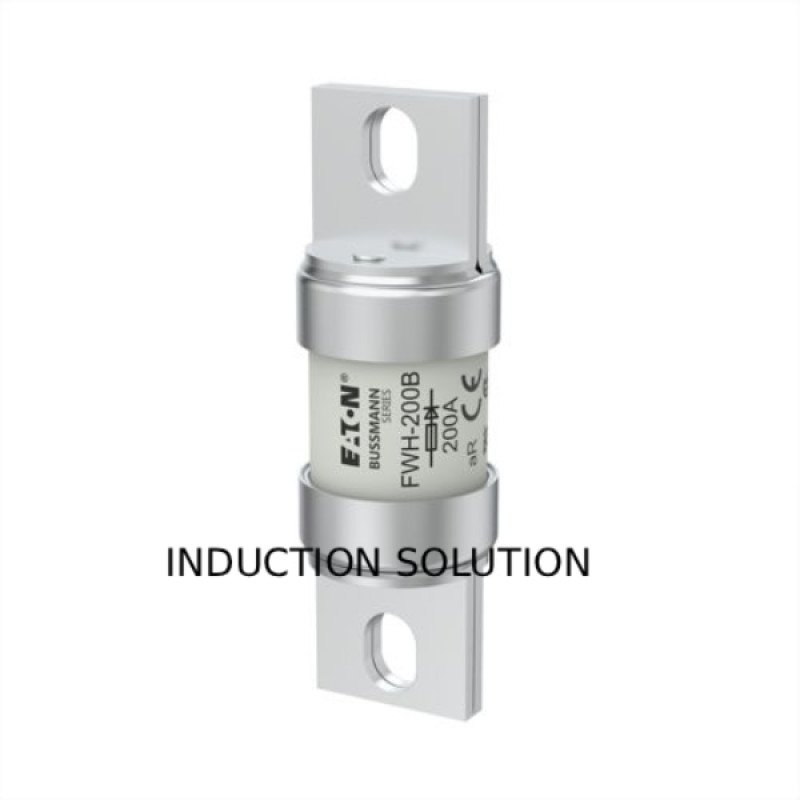

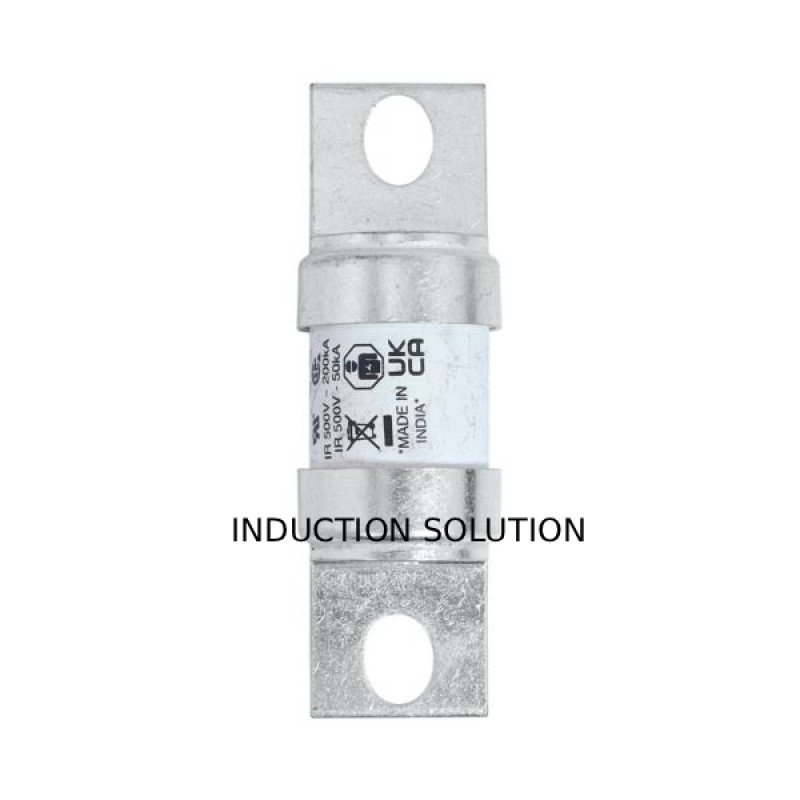

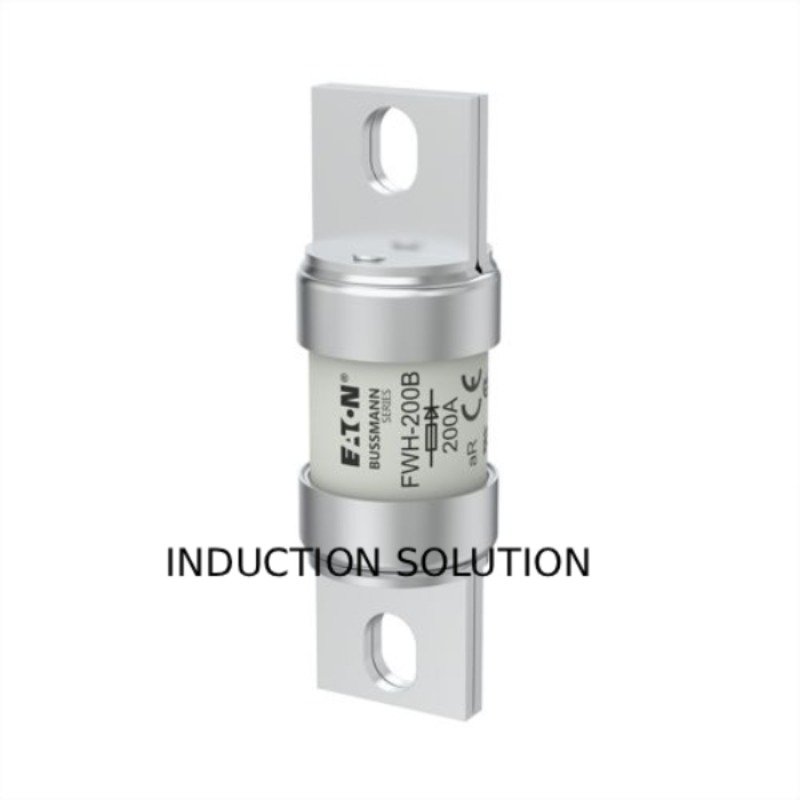

| descriptionLabel | Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (UL), 200A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, None, High speed fuse, Blade end X blade end, Class aR, Stud, White, Ceramic | |
| General specifications | ||
| Product Name | Eaton Bussmann series high speed cylindrical fuse | |
| Catalog Number | FWH-200B | |
| EAN | 5027590020916 | |
| UPC | 051712795869 | |
| Product Length/Depth | 91 mm | |
| Product Height | 30 mm | |
| Product Width | 30 mm | |
| Product Weight | 152 g | |
| Compliances | CE Marked RoHS Compliant | |
| Certifications | UL Recognized CSA Certified | |
| Product specifications | ||
| Amperage Rating | 200 A | |
| Breaking capacity | 200 kA | |
| Fuse indicator | Non Indicating | |
| Insulated metal gripping lugs (IMGL) | No | |
| Utilization category | aR (accompanied semiconductor protection) | |
| Voltage type | AC/DC | |
| Rated switching capacity | 200 kA | |
| Rated voltage AC | 500 V | |
| Rated voltage DC | 500 V | |
| Mounting dimension | M8 | |
| Center-to-center distance of connections | 74.09 mm | |
| Current type | AC/DC | |
| Class | Class aR | |
| Clearing (I2T) | 8500 | |
| Watt losses | 40 W | |
| Fuse shape | Center bolted tags | |
| Pre arc (I2T) | 1900 | |
| Color | White | |
| Interrupt rating | 200 kAIC at 300 Vdc 50 kAIC at 300 Vdc | |
| Connection | Blade end x blade end | |
| Construction size | Other | |
| Material | Ceramic | |
| Mounting method | Stud | |
| Quantity | 1 | |
| Voltage rating | 500 Vac, 500 Vdc | |
| Type | High speed fuse | |
| Application | Semiconductor, DC Common bus, DC drives, Power converters/rectifiers | |
| Fuse type | FWH-B | |
| Fuse system (according to IEC 60269) | Other |
