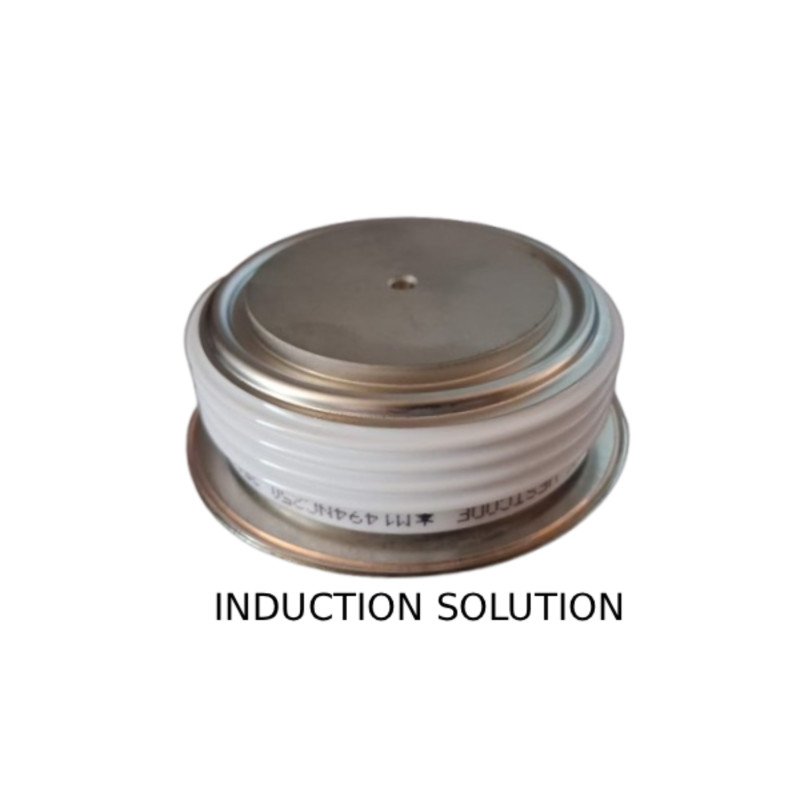

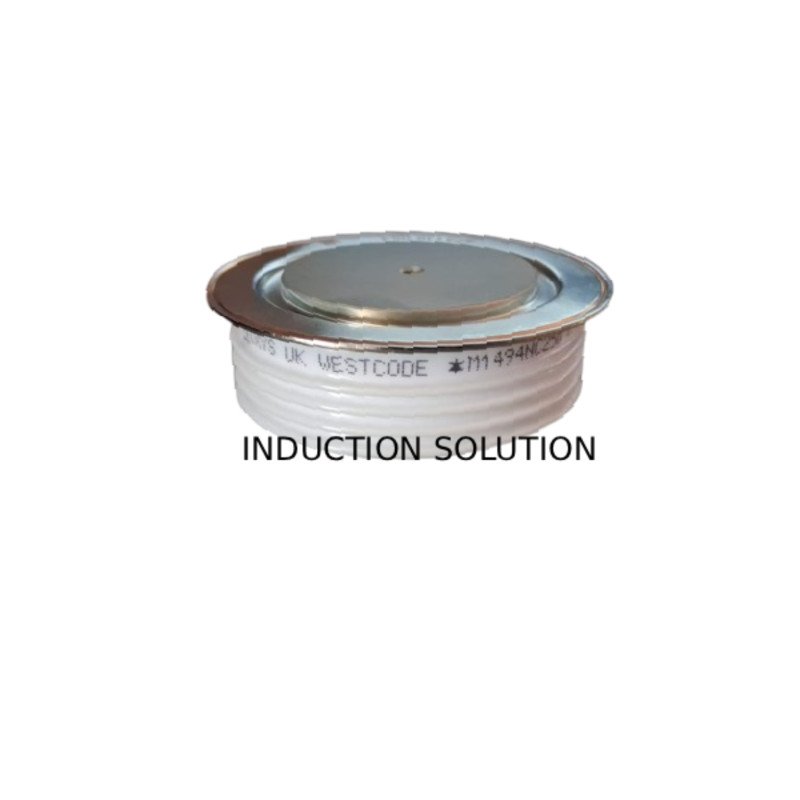

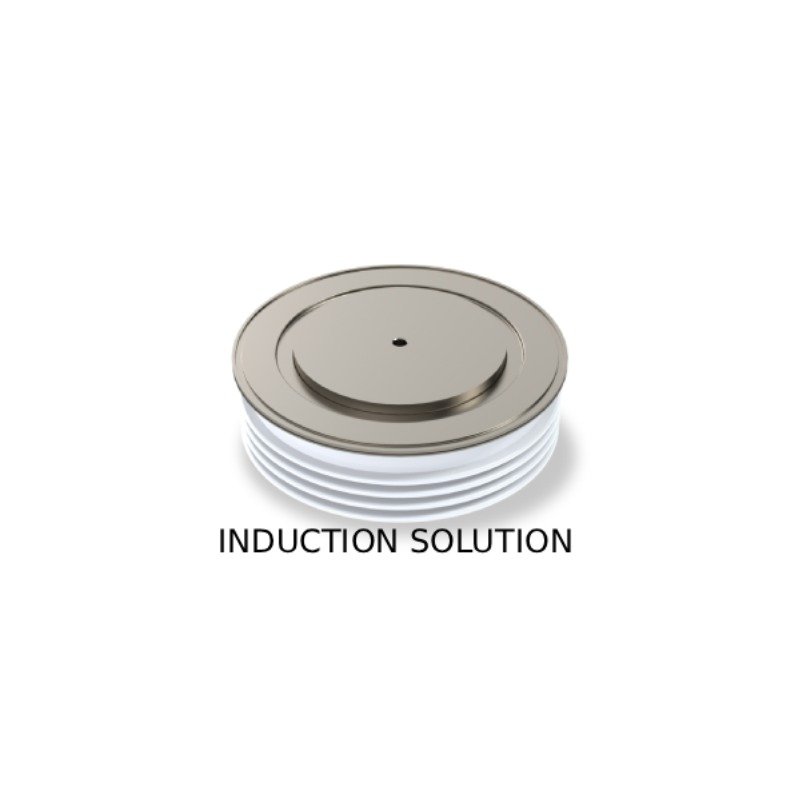

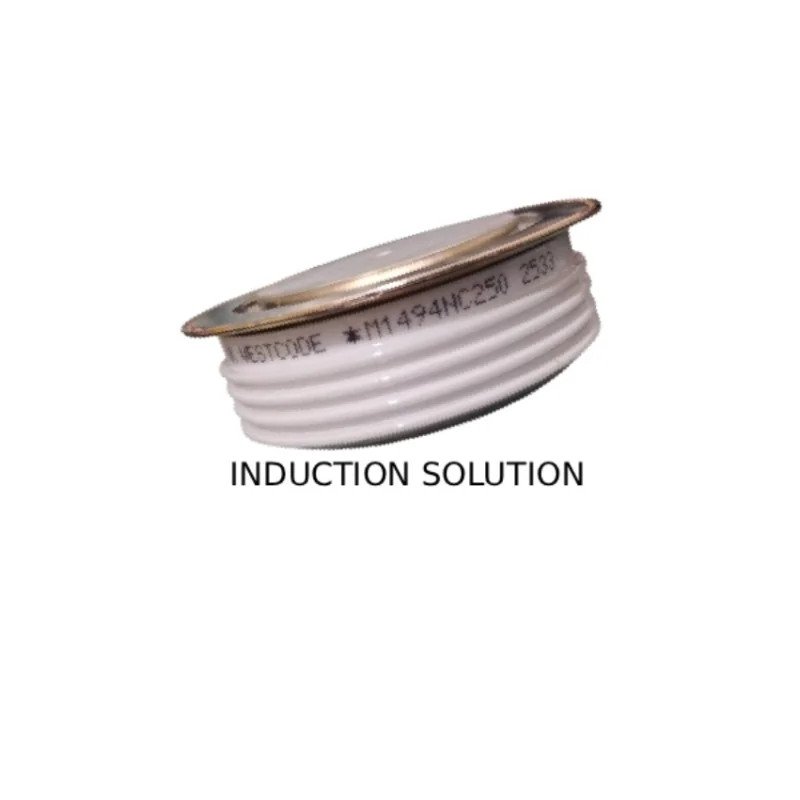

M1494NC250
Series: Soft Recovery Capsule Type
Our soft recovery diodes are available with a range of reverse recovery characteristics tailored to meet the requirements of both freewheeling and snubber applications. These devices are available with blocking voltages up to 6kV and average currents up to 2413A. 24mm to 75mm diameter silicon slices. These parts are particularly suitable where soft recovery is required, such as RCD snubbers, voltage clamping and snubber less applications.
For additional technical details, please contact support.
Specifications
|
Property |
Value |
|
TJ Max (°C) |
125 |
|
Package Type |
W5 |
|
VRRM [Diode] (V) |
2500 |
|
IFAV @ TK = 55 ° (A) |
1494 |
|
IFSM 10ms Half Sine Wave (A) |
19600 |
|
I2t [Diode] (A2s) |
1.92 x 10⁶ |
|
trr,typ (µs) |
3.9 |
|
Qrr (µC) |
815 |
|
V0 (V) |
1.15 |
|
rS (mΩ) |
0.265 |
|
RthJK 180 °C Sine Wave (K/W) |
0.022 |
