Main
|
|
|
Range |
EasyPact |
|
Range of product |
EasyPact CVS100...250 |
|
Product name |

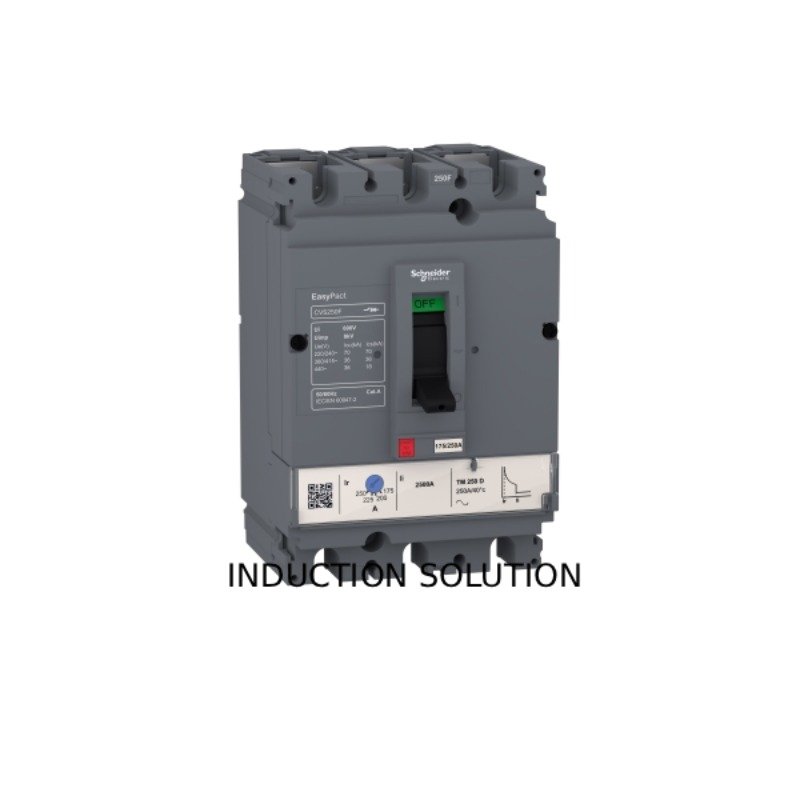

EasyPact CVS |
|
Device short name |
CVS160F |
|
Product or component type |
Circuit breaker |
|
Device application |
Distribution |
|
Poles description |
3P |
|
Protected poles description |
3D |
|
Earth leakage protection (Vigi add on) |
Without |
|
[In] rated current |
125 A at 40 °C |
|
Network type |
AC |
|
Utilisation category |
Category A |
|
[Icu] Breaking capacity |
36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
Trip unit name |
TM-D |
|
Trip unit technology |
Thermal-magnetic |
|
Trip unit rating |
125 A at 40 °C |
|
Protection type |
Overload protection (thermal) |
|
Complementary
|
|
|
[Uimp] rated impulse withstand voltage |
8 kV conforming to EN/IEC 60947-2 |
|
Network frequency |
50/60 Hz |
|
Breaking capacity code |
F |
|
[Ics] rated service breaking capacity |
18 kA at 440 V AC
50/60 Hz conforming to IEC 60947-2 |
|
Mechanical durability |
25000 cycles |
|
Electrical durability |
12000 cycles 415 V In conforming to IEC 60947-2 |
|
Control type |
Toggle |
|
Thermal protection adjustment range |
87.5…125 A |
|
Long time pick-up adjustment type Ir |
Adjustable |
|
Long time pick-up adjustment range |
0.7...1 x In |
|
Long time delay adjustment type |
Fixed |
|
Instantaneous pick-up adjustment type Ii |
Fixed |
|
Instantaneous pick-up adjustment range |
1250 A |
|
Contact position indicator |
Yes |
|
Mounting support |
Backplate |
|
Mounting mode |
Fixed |
|
Upside connection |
Front |
|
Downside connection |
Front |
|
Connections - terminals |
Screw connection |
|
Connection pitch |
35 mm |
|
Compatibility code |
CVS160 |
|
Width |
105 mm |
|
Depth |
86 mm |
|
Height |
161 mm |
|
Net weight |
1.5 kg |
|
Environment
|
|
|
Standards |
EN 60947-2 |
|
Product certifications |
GOST |
|
Electrical shock protection class |
Class II |
|
Pollution degree |
3 conforming to IEC 60664-1 |
|
IP degree of protection |
IP40 |
|
Ambient air temperature for operation |
-25…70 °C |
|
Ambient air temperature for storage |
-50…85 °C |
