Main
|
|
|
Product or component type |

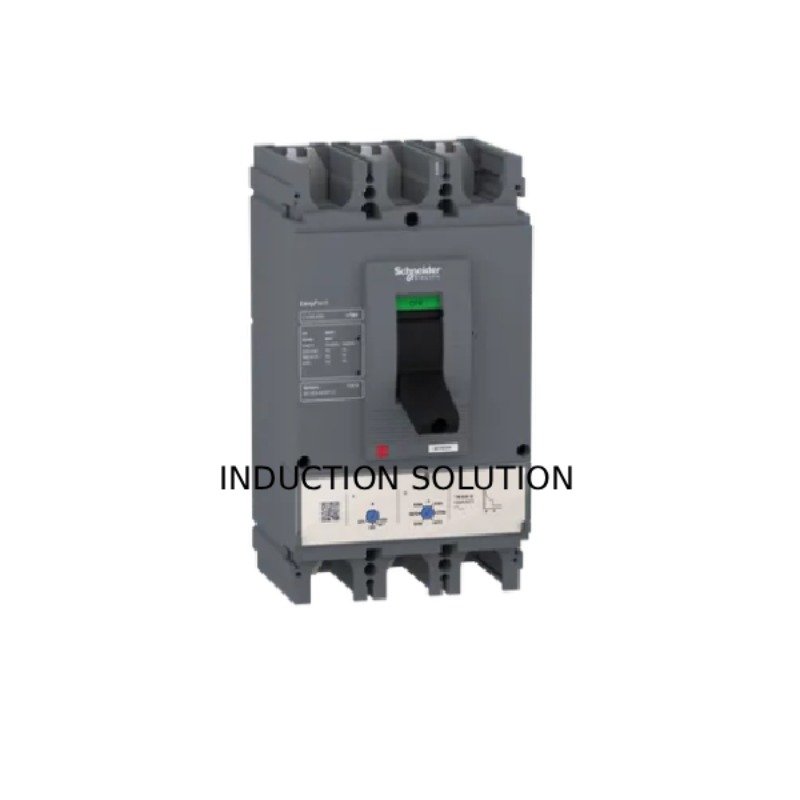

Circuit breaker |
|
Device application |
Distribution |
|
Poles description |
3P |
|
Protected poles description |
3D |
|
Earth leakage protection (Vigi add on) |
Without |
|
[In] rated current |
400 A at 40 °C |
|
Network type |
AC |
|
Utilisation category |
Category A |
|
[Icu] Breaking capacity |
70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC
60947-2 |
|
Trip unit name |
TM-D |
|
Trip unit technology |
Thermal-magnetic |
|
Trip unit rating |
400 A at 40 °C |
|
Protection type |
Short-circuit protection (magnetic) |
|
Complementary
|
|
|
[Uimp] rated impulse withstand voltage |
8 kV conforming to EN/IEC 60947-2 |
|
Network frequency |
50/60 Hz |
|
Breaking capacity code |
N |
|
[Ics] rated service breaking capacity |
70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
|
Mechanical durability |
15000 cycles |
|
Electrical durability |
6000 cycles 415 V In conforming to IEC 60947-2 |
|
Control type |
Toggle |
|
Thermal protection adjustment range |
280…400 A |
|
Long time pick-up adjustment type Ir |
Adjustable |
|
Long time pick-up adjustment range |
0.7...1 x In |
|
Long time delay adjustment type |
Fixed |
|
Instantaneous pick-up adjustment type Ii |
Adjustable |
|
Instantaneous pick-up adjustment range |
5...10 x In |
|
Contact position indicator |
Yes |
|
Mounting support |
Backplate |
|
Mounting mode |
Fixed |
|
Upside connection |
Front |
|
Downside connection |
Front |
|
Connections - terminals |
Screw connection |
|
Connection pitch |
45 mm |
|
Compatibility code |
CVS400 |
|
Width |
140 mm |
|
Depth |
110 mm |
|
Height |
255 mm |
|
Net weight |
4.7 kg |
|
Environment
|
|
|
Standards |
EN 60947-2 |
|
Product certifications |
GOST |
|
Electrical shock protection class |
Class II |
|
Pollution degree |
3 conforming to IEC 60664-1 |
|
IP degree of protection |
IP40 |
|
Ambient air temperature for operation |
-25…70 °C |
|
Ambient air temperature for storage |
-50…85 °C |
|
Packing Units
|
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
14.800 cm |
|
Package 1 Width |
15.600 cm |
|
Package 1 Length |
28.700 cm |
|
Package 1 Weight |
4.916 kg |
|
Unit Type of Package 2 |
S04 |
|
Number of Units in Package 2 |
3 |
|
Package 2 Height |
30.000 cm |
|
Package 2 Width |
40.000 cm |
|
Package 2 Length |
60.000 cm |
|
Package 2 Weight |
15.508 kg |
