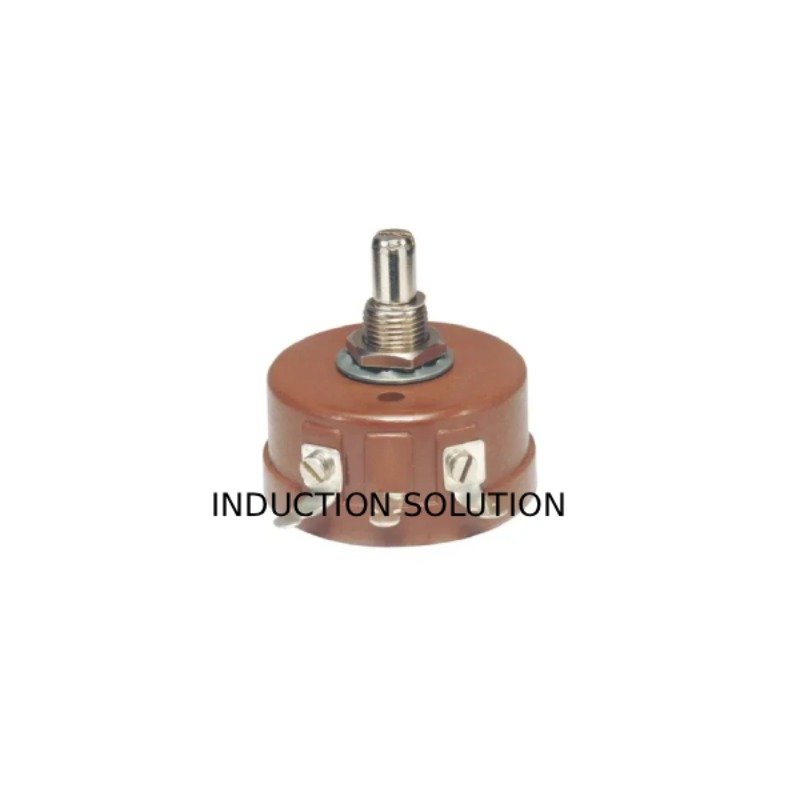

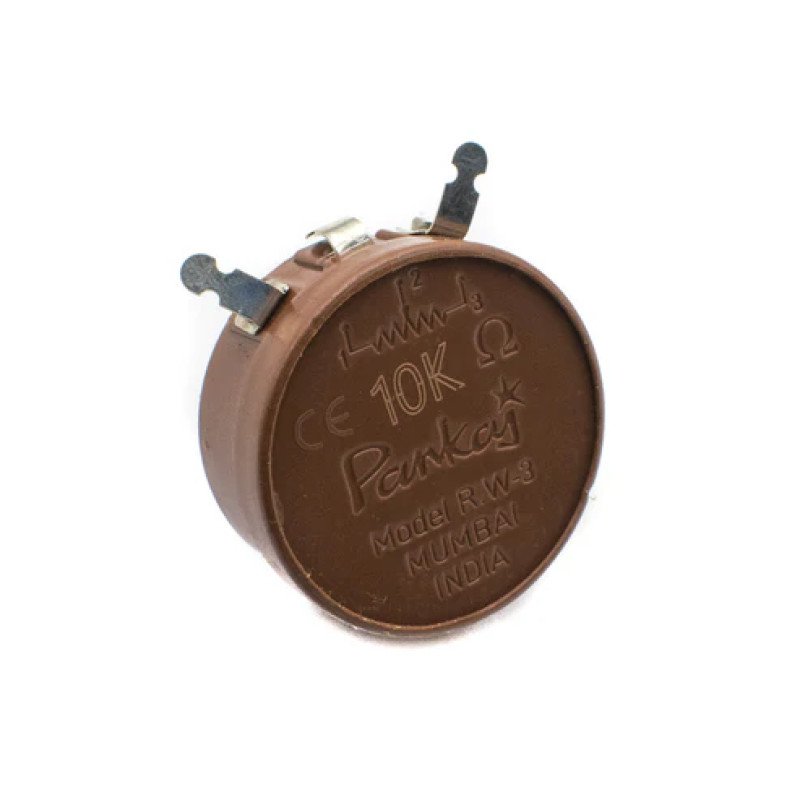

PANKAJ RW-3 (3
watt) 10K ohm Single Turn Wire Wound Potentiometer with 25mm Shaft
Specifications:
Make: Pankaj
Model - RW-3
Resistance - 10K ohm
Resistance Tolerance -+10% Standard, +5% Special
Power Rating - 3 Watt @ 40°C
End Resistance - 0.2Ω or 0.02 % whichever is greater
Elec. Angle of Rotation - 265° + 15°
Maximum Working Voltage - 500 VDC
Insulation Resistance - 300 MΩ @ 500 VDC
Voltage Proof - 1500 VAC for 1 Min. At Sea level
TCR of Resistance Wire - 150 ppm/°C
Rotational Life Expectancy - 20,000 Cycles at 15 RPM
Temperature Range - 0 – 70°C.

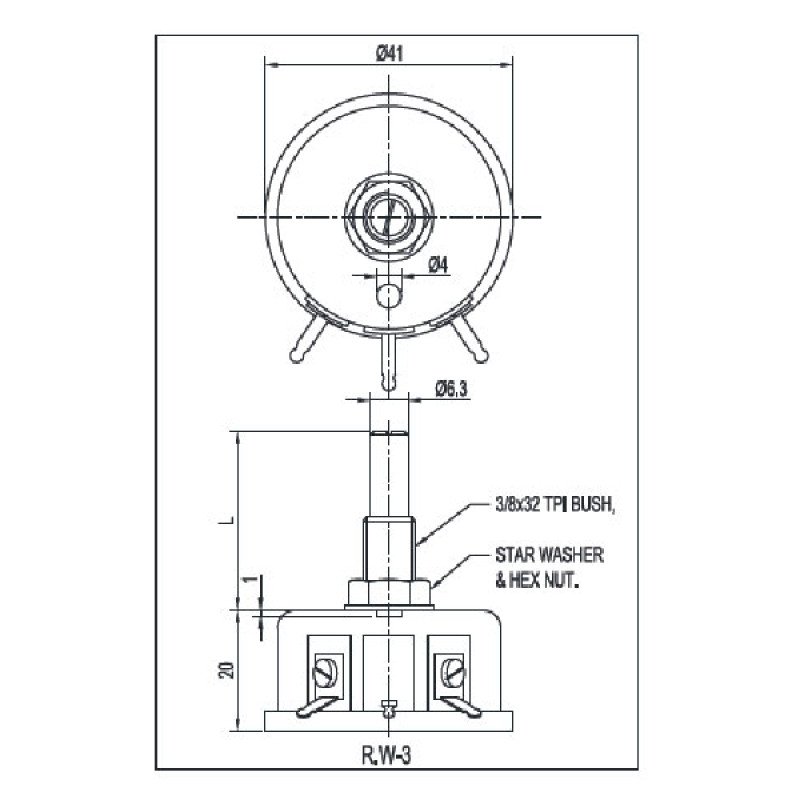

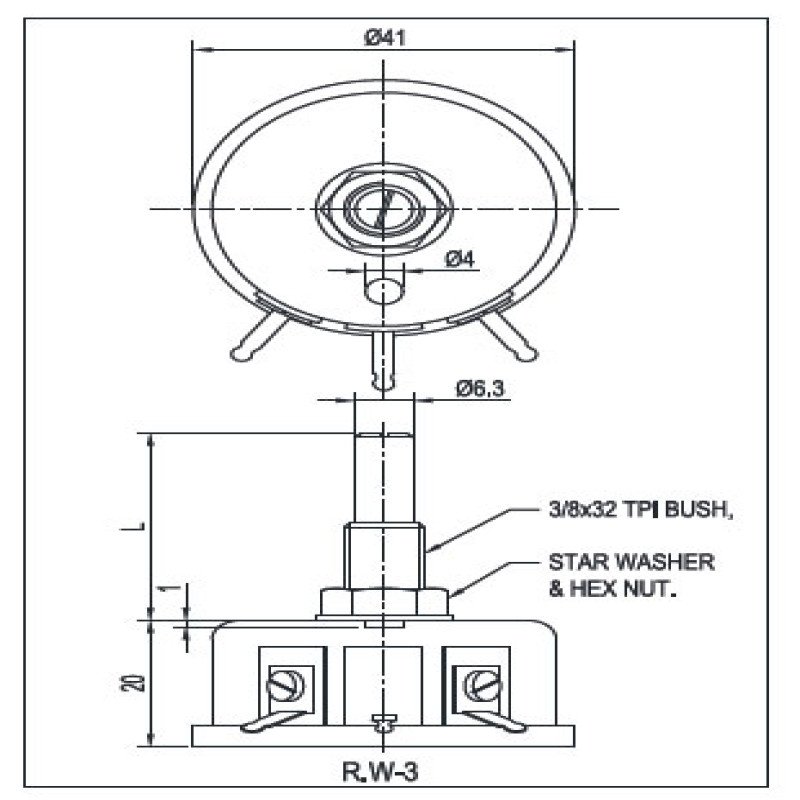

Shaft Diameter - 6.3mm
Shaft Length- 25mm
Housing Length: 20mm
Housing Diameter 41mm
Height- 44mm
Bush Mounting- 3/38″ x 32 TPI, 10mm Length
Mechanical Angle of Rot.-
285° + 15°
Features

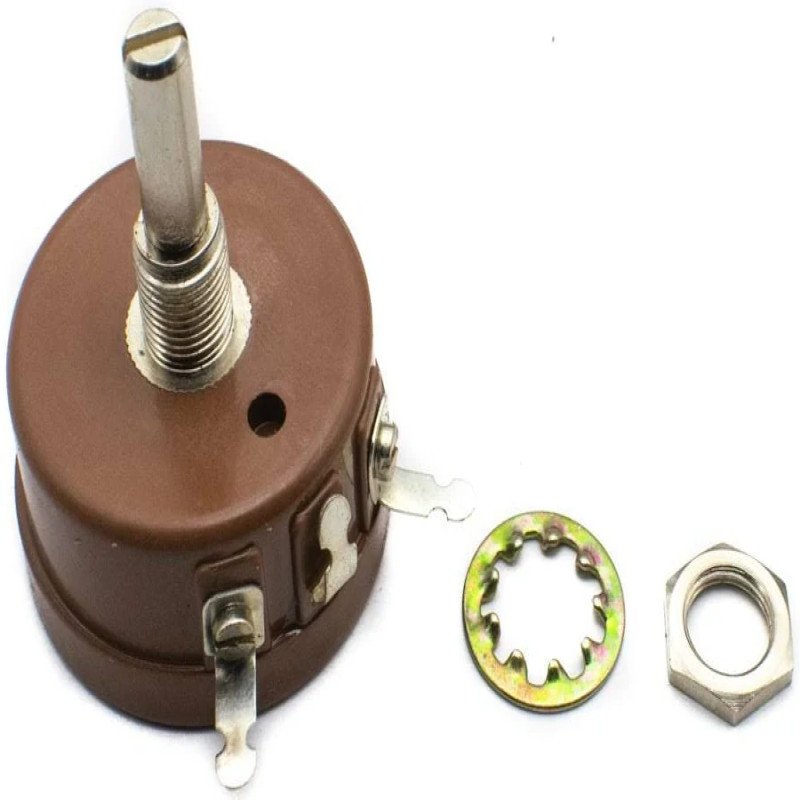

Brass Nickel Plated Bush & Spindle
Tin Plated Terminals
High Grade Engineering
Molded Plastic Housing
Applications
Temperature Controllers,
Power Supplies,
Process Control Equipment’s,
Test and Measuring Instruments,
Control Panels,
Offset Settings,
Amplifier Speakers,
AC/DC Motor Drives,
