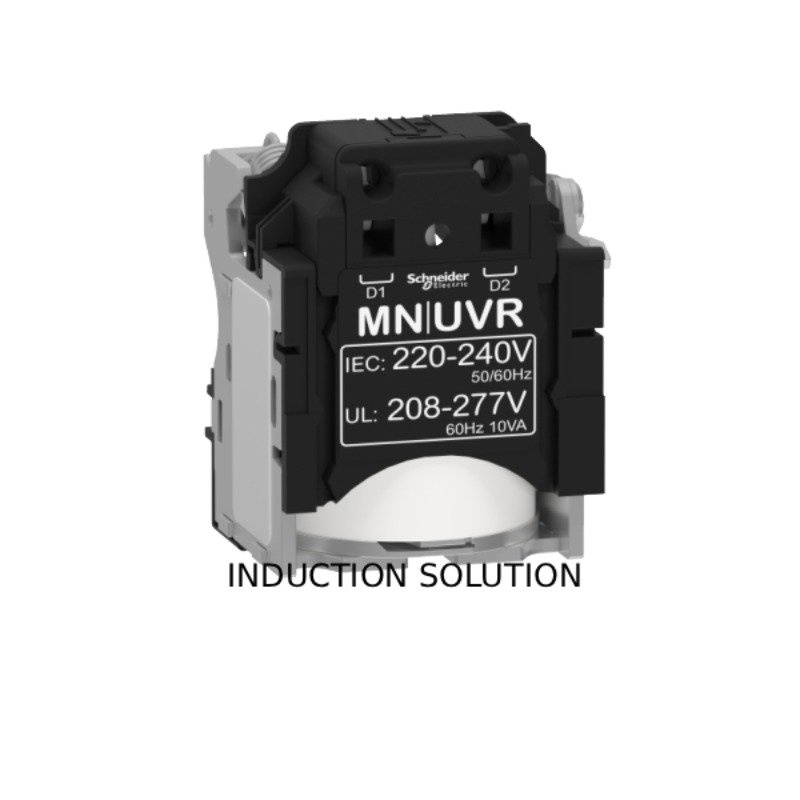

Description: This is a MN under voltage release for Compact NSX, PowerPact Multi standard and Easy Pact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This under voltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, Power Pact Multi standard and Easy Pact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Device short name |
MN |
Product or component type |
Voltage release |
Device application |
Control |
Voltage release type |
Opening coil
|
[Uc] control circuit voltage |
220...240 V AC 50/60 Hz
|
Range compatibility |
ComPacT ComPacT NSX
|
|
Complementary |
|
|
Operating threshold
|
0.35...0.7 x Un opening |
|
Response time
|
50 ms |
|
Supply holding power
|
5 VA |
|
Supply inrush power
|
10 VA |
|
Auxiliary connection terminal
|
Spring 0.5…1.5 mm² (AWG 20...AWG 16) |
|
Wire stripping length
|
7 mm |
